Tier 2 Node Provider Setup Guide

To all Tier 2 Node Providers: Please complete the Ubuntu OS setup according to the guide below before proceeding with the node installation.
Tier 2 Ubuntu OS Setting Guide

1. NVIDIA Graphics Driver Installation

  • After logging into Ubuntu, you must install the NVIDIA driver to ensure the system recognizes the GPU correctly.

  • Remove Existing Drivers

    $ sudo apt-get purge nvidia*
$ sudo apt-get autoremove
$ sudo apt-get autoclean

$ sudo dpkg -l | grep nvidia
$ sudo apt remove --purge {Package Name from the output}

  • Installing the New NVIDIA Driver

    • Install Prerequisite Packages for NVIDIA Driver
    $ sudo apt install ubuntu-drivers-common
$ sudo add-apt-repository ppa:graphics-drivers/ppa
$ sudo apt update
$ sudo apt install alsa-utils -y

  • Install the graphics driver labeled as "recommended" after executing the command.

    • Example: Installing Driver for NVIDIA GeForce RTX 3060
    $ sudo ubuntu-drivers devices

== /sys/devices/pci0000:00/0000:00:03.1/0000:09:00.0 ==
modalias : pci:v000010DEd00002504sv00001458sd0000407Bbc03sc00i00
vendor   : NVIDIA Corporation
model    : GA106 [GeForce RTX 3060 Lite Hash Rate]
driver   : nvidia-driver-550-open - distro non-free
driver   : nvidia-driver-545 - distro non-free
driver   : nvidia-driver-535 - distro non-free
driver   : nvidia-driver-535-server-open - distro non-free
**driver   : nvidia-driver-550 - distro non-free recommended**
driver   : nvidia-driver-545-open - distro non-free
driver   : nvidia-driver-535-server - distro non-free
driver   : nvidia-driver-535-open - distro non-free
driver   : nvidia-driver-470 - distro non-free
driver   : nvidia-driver-470-server - distro non-free
driver   : xserver-xorg-video-nouveau - distro free builtin

$ sudo apt install nvidia-driver-550

# Please install the "recommended" driver as displayed on your own screen

  • Reboot the OS after the graphics driver installation is complete.

    $ sudo reboot

  • After the OS starts, execute the nvidia-smi command to verify that the graphics driver is installed correctly.

    $ nvidia-smi

Tue Feb 25 09:47:42 2025
+-----------------------------------------------------------------------------------------+
| NVIDIA-SMI 550.120                Driver Version: 550.120        CUDA Version: 12.4     |
|-----------------------------------------+------------------------+----------------------+
| GPU  Name                 Persistence-M | Bus-Id          Disp.A | Volatile Uncorr. ECC |
| Fan  Temp   Perf          Pwr:Usage/Cap |           Memory-Usage | GPU-Util  Compute M. |
|                                         |                        |               MIG M. |
|=========================================+========================+======================|
|   0  NVIDIA GeForce RTX 3060        On  |   00000000:09:00.0 Off |                  N/A |
|  0%   42C    P8             23W /  170W |       2MiB /  12288MiB |      0%      Default |
|                                         |                        |                  N/A |
+-----------------------------------------+------------------------+----------------------+

+-----------------------------------------------------------------------------------------+
| Processes:                                                                              |
|  GPU   GI   CI        PID   Type   Process name                              GPU Memory |
|        ID   ID                                                               Usage      |
|=========================================================================================|
|  No running processes found                                                             |
+-----------------------------------------------------------------------------------------+

2. Gcube Agent Installation

  • Pre-installation Preparation for Gcube Agent
    1. Ensure all prerequisites are met before running the installation script.
      • gcube.ai Website Account: Your login credentials for the official platform.
      • Email Address: The email where you will receive essential configuration files and access tokens.
    2. Agent Installation File and Personal User Token Delivery
      After Gcube receives your information, the Agent installation file and the Personal User Token required for installation will be sent to you.
      ※ Note: These will be delivered to the email address you provided.
      • gai_svr_inst: The executable installation file for the Gcube server.
      • Personal User Token: Your unique authentication key required during the setup process.

  • Proceed with the installation after logging into Ubuntu.

  • Create Agent Installation Directory and Grant Execution Permissions

    # Create a dedicated directory
$ mkdir -p ~/work/gcube_instller

# Locate the Agent Installation File in the Dedicated Directory
$ cd ~/work/gcube_installer/

# Granting Execution Permission to the Agent Installation File
$ chmod +x gai_svr_inst

  • Basic File Installation

    # Basic File Installation
$ sudo ./gai_svr_inst base

INFO[0000] Rnd initialized...
INFO   [2025-02-25T06:11:15Z] Install Base All ...
INFO   [2025-02-25T06:11:38Z] baseNetools complete.
INFO   [2025-02-25T06:11:46Z] procWireGuard complete.
INFO   [2025-02-25T06:11:46Z] PktPathBase: /root/packages/ubuntu22/ k8s_packages_u22_v1.28.tar.gz
INFO   [2025-02-25T06:12:10Z] procK8sPackage complete.
ERROR  [2025-02-25T06:13:28Z] Failed to run                                 error="exit status 1"
WARNING[2025-02-25T06:13:28Z] util.ExecCommand dpkg crio                    error="exit status 1"
INFO   [2025-02-25T06:13:29Z] procCrio complete.
INFO   [2025-02-25T06:14:31Z] procKubernetes complete.
ERROR  [2025-02-25T06:14:36Z] Failed to run                                 error="exit status 100"
WARNING[2025-02-25T06:14:36Z] ExecCommand apt install                       error="exit status 100"
INFO   [2025-02-25T06:14:36Z] apt fix broken
INFO   [2025-02-25T06:14:42Z] retry install nvidia-container-toolkit
INFO   [2025-02-25T06:14:52Z] procNvidiaPlugin complete.
INFO   [2025-02-25T06:14:53Z] clearAutoUpdate complete.
INFO   [2025-02-25T06:14:53Z] **procGaiClientInstaller complete.**

    • When procGaiClientInstaller complete is displayed on the last line, it indicates that the installation of all core components has been successfully finished.

    • Terminal Output Example

    tier2 우분투 설치 가이드 에이전트 설치 예시 1 화면 이미지.png

  • Proceeding with Node Activation

    • Run the following command to finalize the node setup and initiate the service.

      • Ethernet NIC Name: The specific name of your network interface (e.g., eth0, enp3s0).
      • Access Token: Your unique personal token (Case-sensitive).
      # View all Using Ethernet Interface

$ ifconfig -a

      # Command to open Node

$ sudo ./gai_svr_inst --nic <ethernet nic name> reg <access token>

      # Execution Example
# Verify active network interface name -> (enp5s0)

$ ifconfig -a

docker0: flags=4099<UP,BROADCAST,MULTICAST>  mtu 1500
        inet 172.17.0.1  netmask 255.255.0.0  broadcast 172.17.255.255
        inet6 fe80::7807:f9ff:fe9c:6967  prefixlen 64  scopeid 0x20<link>
        ether 7a:07:f9:9c:69:67  txqueuelen 0  (Ethernet)
        RX packets 1779  bytes 49812 (49.8 KB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 1189  bytes 130886 (130.8 KB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

enp5s0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 10.39.60.65  netmask 255.255.254.0  broadcast 10.39.61.255
        inet6 fe80::642:1aff:fe94:5edd  prefixlen 64  scopeid 0x20<link>
        ether 04:42:1a:94:5e:dd  txqueuelen 1000  (Ethernet)
        RX packets 2283880  bytes 2164088878 (2.1 GB)
        RX errors 0  dropped 10  overruns 0  frame 0
        TX packets 1513085  bytes 1359887094 (1.3 GB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0
        device memory 0xfc400000-fc4fffff

lo: flags=73<UP,LOOPBACK,RUNNING>  mtu 65536
        inet 127.0.0.1  netmask 255.0.0.0
        inet6 ::1  prefixlen 128  scopeid 0x10<host>
        loop  txqueuelen 1000  (Local Loopback)
        RX packets 46784  bytes 3534359 (3.5 MB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 46784  bytes 3534359 (3.5 MB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

wlp4s0: flags=4098<BROADCAST,MULTICAST>  mtu 1500
        *ether f4:b3:01:39:2b:91  txqueuelen 1000  (Ethernet)*
        RX packets 0  bytes 0 (0.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 0  bytes 0 (0.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

      # Proceed to register Node by sudo ./gai_svr_inst --nic <ethernet nic name> reg <access token>

$ sudo ./gai_svr_inst --nic enp5s0 reg eyJh...생략...X63w

INFO[0000] Rnd initialized...
INFO   [2025-02-25T06:23:16Z] access token : &[eyJh...X63w] enp5s0
INFO   [2025-02-25T06:23:16Z] MAC address                                   mac="00:00:00:00:00:00"
INFO   [2025-02-25T06:23:16Z] mac address 000000000000
DEBUG  [2025-02-25T06:23:16Z] url https://api.gcube.ai/api/node/register
DEBUG  [2025-02-25T06:23:16Z] body {"category":"svr","macId":"000000000000"}
DEBUG  [2025-02-25T06:23:16Z] res &{200 6150125230709283 eyJh...xsHS  }
INFO   [2025-02-25T06:23:16Z] provision code 0000000000000000
INFO   [2025-02-25T06:23:16Z] start provision ...
DEBUG  [2025-02-25T06:23:16Z] body {"provision_code":"0000000000000000"}

    • Execution Example

    tier2 우분투 설치 가이드 에이전트 설치 예시 2 화면 이미지.png

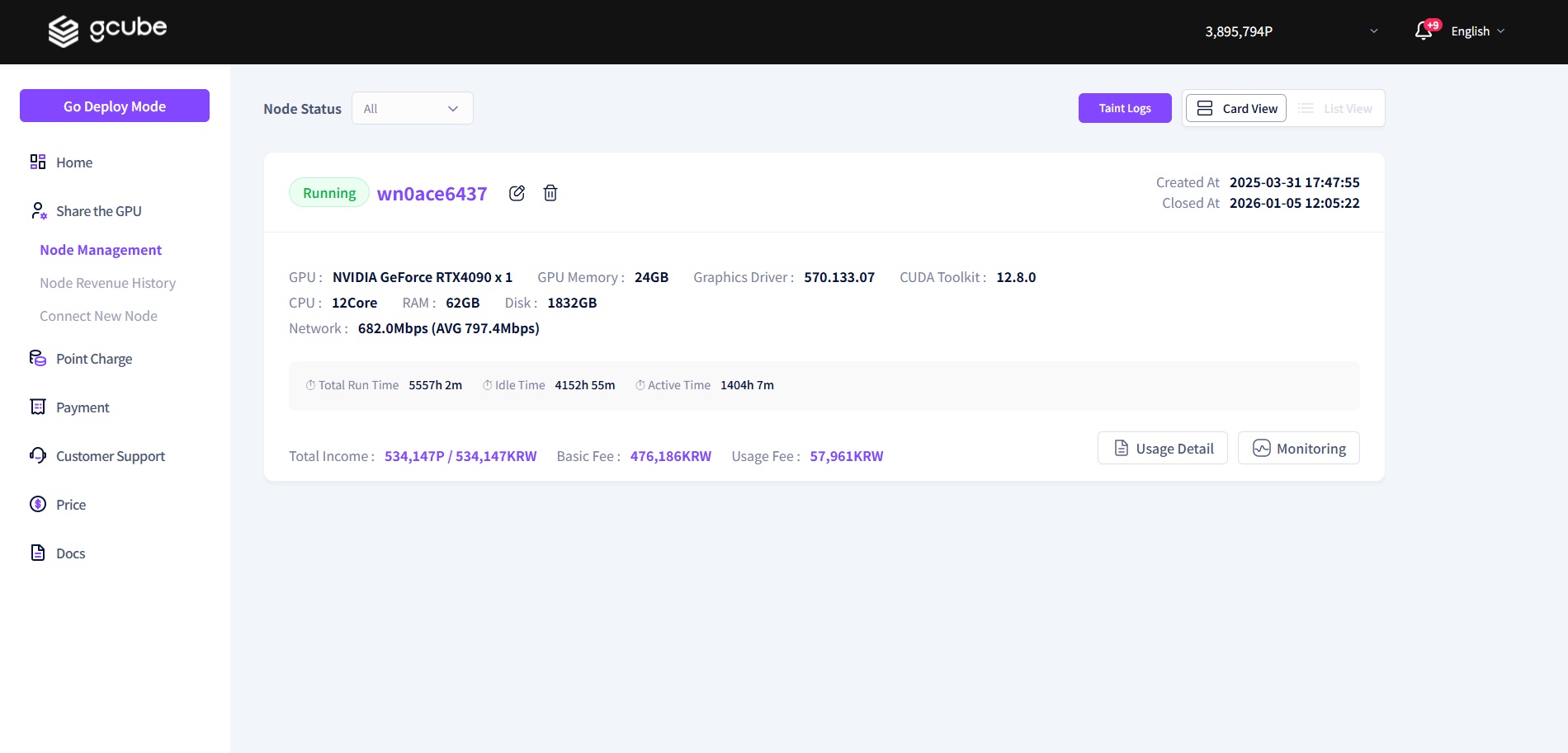

  • Verify Registered Nodes on the gcube.ai Node Page
