Storage Management Setup

Through Storage Management, you can configure container image repository and backup data storage information.

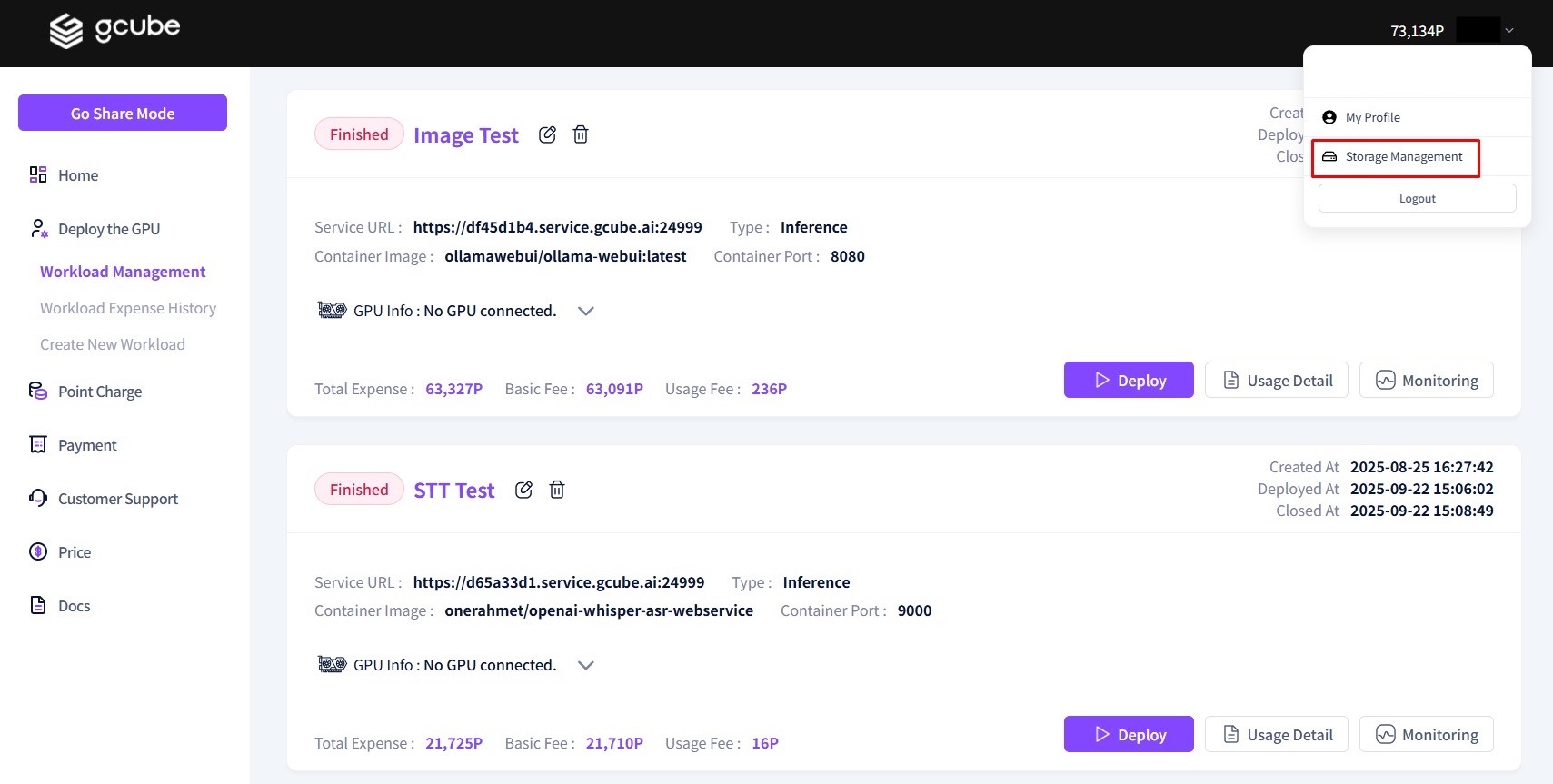

1. Click the arrow next to your name → Click “Storage Management”

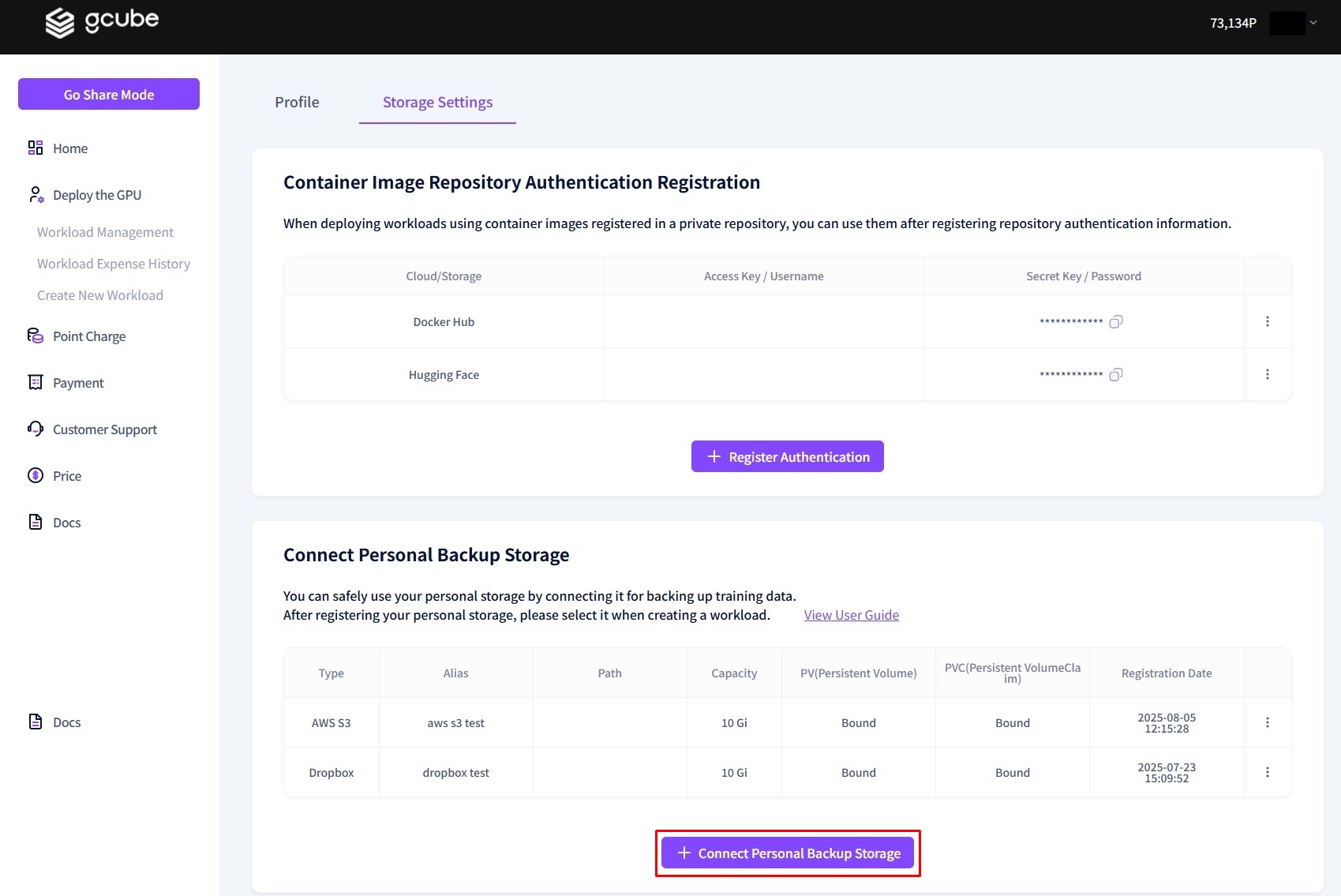

2. As shown in the screen above, you can configure “Register Authentication” and “Connect Personal Backup Storage.”

• Register Authentication: To use container images from a private repository when setting up a workload, you must register your repository credentials to access the image information.

• Connect Personal Backup Storage: You can connect and save your trained data to a personal storage space.

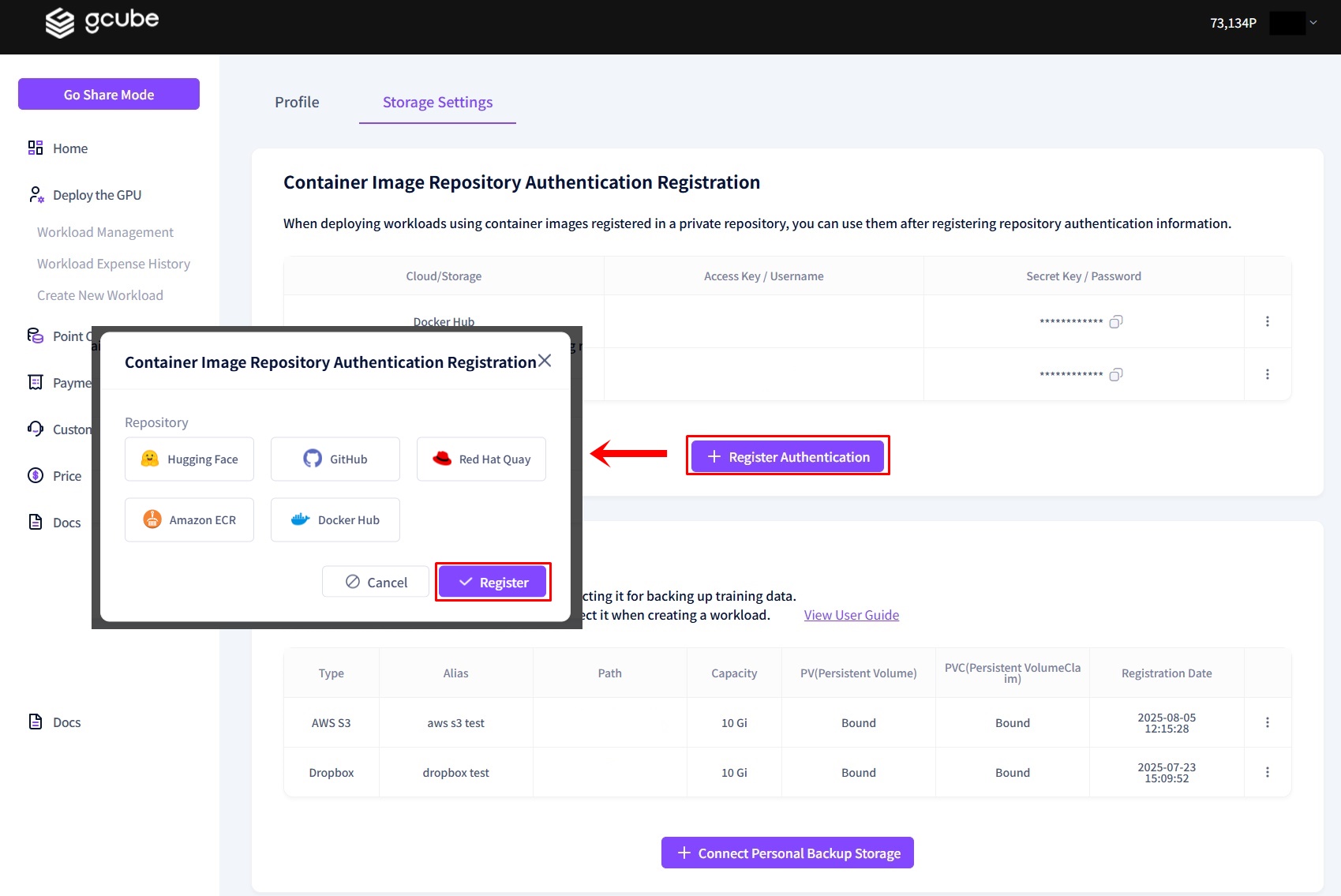

3. Register Authentication: Click “+ Register Authentication” → Select the “Repository” provider → Enter the required information → Click the “Register” button to complete the process.

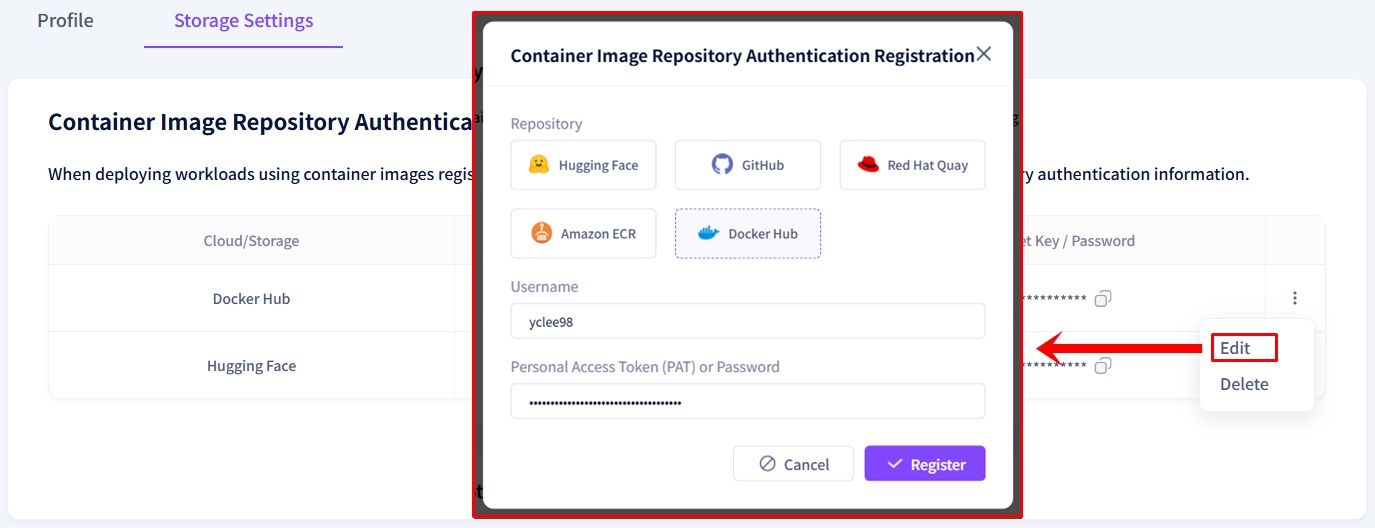

4. Click the “Edit” button for user credentials → Modify the information in the pop-up window → Click the “Register” button to complete the modification.

5. Connect Personal Backup Storage: Click “+ Connect Personal Backup Storage” → Select the “Type” in the storage registration pop-up → Enter the required information → Click the “Register” button to complete the process.

6. When registering storage information, set a Storage Alias to be displayed in the list and specify the Folder Path within the storage to be linked before saving.
[Example: “/data/data” is the path where Dropbox is mounted inside the container. You can read and write files at this location.]

The access method and capacity can be adjusted as needed.

• dropbox


• aws s3

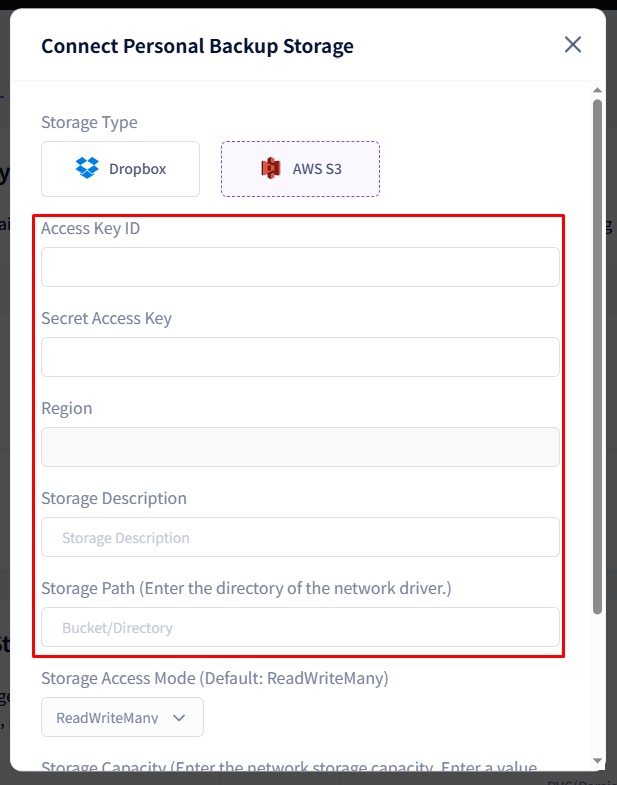

  [For AWS storage, you must enter the IAM access key, secret access key, and the bucket region.]
